SQL

Behind the curtains

Topics:

  • What is a query
  • SQL Processing
  • Indexes
  • Execution Cost
  • Execution Plans
  • Statistics;

What is a query?

  • SQL instruction that retrieves data based on specific criteria...
  • ...in a declarative form

Examples:


SELECT * FROM users;


SELECT prod.name, COUNT(sod.*)
	FROM production.product prod
		LEFT OUTER JOIN sales.salesorderdetail sod
			ON prod.productid = sod.productid
	WHERE prod.name LIKE 'W%'
	GROUP BY prod.name
	HAVING COUNT(sod.*) > 100
	ORDER BY 2 DESC, 1;

You don't say how the database will read the data, just what data will be read.

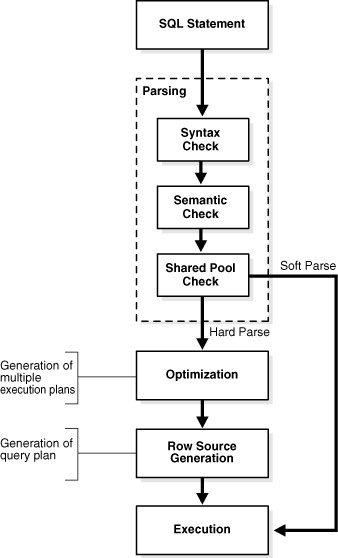

Parsing/Running

Credits: Oracle.

Optimization

To find the best way to read the requested data, the optimizer uses several tools, like:

  • Query transformation
  • Access Paths
  • Indexes
  • Statistics
  • Hints(*)

(*) not available on all dbs

Query Transformation:

  • Changes the query structure to make it more efficient
  • Modifies things like Join order, Boolean operators, and so on.

Access Paths:

  • Evaluates the possibles access paths to the requested data (indexes)

Indexes

  • Storage structure for parts of data to improve access times to records
  • Most of the time contains one or a few of the table columns
  • Usually ignored when:
    • Small dataset
    • Query reads large percentage of data

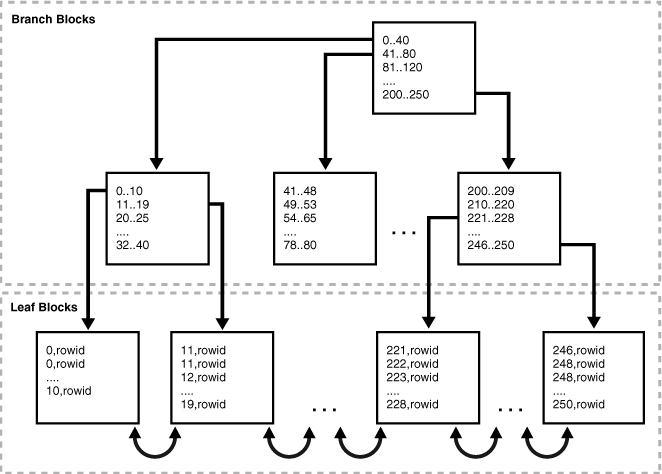

  • Most common data structure: B-Tree

Indexes

Cost

  • Estimated measure of how 'hard' is to read the data
  • Based on things like memory usage, CPU usage and I/O
  • (as it is estimated, the numbers may vary)

Statistics

  • Used to evaluate how many records the query will manipulate
  • Two basic measures: Selectivity and Cardinality
  • Generally automatically collected by database processes (but can be manually run)

Execution Plan

  • Based on Cost and Statistics, the instance defines some execution plans
  • The lowest overall cost is usually elected and used
  • The selected plan is cached and reused if necessary
  • But beware: the selected plan is not always the best plan

Examples

Execution Plan



development=# EXPLAIN ANALYZE SELECT * FROM T WHERE ID < 10000;

				QUERY PLAN
----------------------------------------------------------------------------------------------------
Seq Scan on t (cost=0.00..1693.00 rows=9940 width=6) (actual time=0.008..7.917 rows=9999 loops=1)
	Filter: (id < 10000) Rows
Removed by Filter: 90001
Planning time: 0.044 ms
Execution time: 8.454 ms (5 rows)

Execution Plan


CREATE UNIQUE INDEX ON T (ID);

EXPLAIN ANALYZE SELECT * FROM T WHERE ID < 10000;

				QUERY PLAN
--------------------------------------------------------------------------------------------------------------------
Index Scan using t_id_idx on t (cost=0.29..334.24 rows=9940 width=6) (actual time=0.024..1.856 rows=9999 loops=1)
	Index Cond: (id < 10000)
Planning time: 0.200 ms
Execution time: 2.444 ms (4 rows)

Execution Plan


EXPLAIN ANALYZE SELECT MAX(id) FROM t WHERE gender='F';

				QUERY PLAN
-------------------------------------------------------------------------------------------------------------
Aggregate (cost=1818.16..1818.17 rows=1 width=4) (actual time=15.974..15.974 rows=1 loops=1)
	-> Seq Scan on t (cost=0.00..1693.00 rows=50063 width=4) (actual time=0.012..11.808 rows=50058 loops=1)
		Filter: ((gender)::text = 'F'::text)
		Rows Removed by Filter: 49942
Planning time: 0.141 ms
Execution time: 15.995 ms (6 rows)

Execution Plan (Using Index)


CREATE INDEX ON t USING BRIN (gender);
EXPLAIN ANALYZE SELECT MAX(id) FROM t WHERE gender='F';

				QUERY PLAN
------------------------------------------------------------------------------------------------------------------------------------
Aggregate (cost=1593.94..1593.95 rows=1 width=4) (actual time=17.712..17.712 rows=1 loops=1)
	-> Bitmap Heap Scan on t (cost=399.99..1468.78 rows=50063 width=4) (actual time=0.069..13.439 rows=50058 loops=1)
		Recheck Cond: ((gender)::text = 'F'::text)
		Rows Removed by Index Recheck: 49942
		Heap Blocks: lossy=443
		-> Bitmap Index Scan on t_gender_idx (cost=0.00..387.48 rows=50063 width=0) (actual time=0.057..0.057 rows=5120 loops=1)
			Index Cond: ((gender)::text = 'F'::text)
Planning time: 0.133 ms
Execution time: 17.754 ms (9 rows)

Execution Plan (Using Index)


CREATE UNIQUE INDEX ON t (id);
EXPLAIN ANALYZE SELECT MAX(id) FROM t WHERE gender='F';

				QUERY PLAN
------------------------------------------------------------------------------------------------------------------------------------------
Result (cost=0.36..0.37 rows=1 width=0) (actual time=0.018..0.018 rows=1 loops=1)
	InitPlan 1 (returns $0) -> Limit (cost=0.29..0.36 rows=1 width=4) (actual time=0.015..0.015 rows=1 loops=1)
		-> Index Scan Backward using t_id_idx on t (cost=0.29..3550.29 rows=50063 width=4) (actual time=0.015..0.015 rows=1 loops=1)
			Index Cond: (id IS NOT NULL)
			Filter: ((gender)::text = 'F'::text)
Planning time: 0.177 ms
Execution time: 0.037 ms

Questions?

More information

Thank you

Leonardo Rota-Rossi
